Specsheet

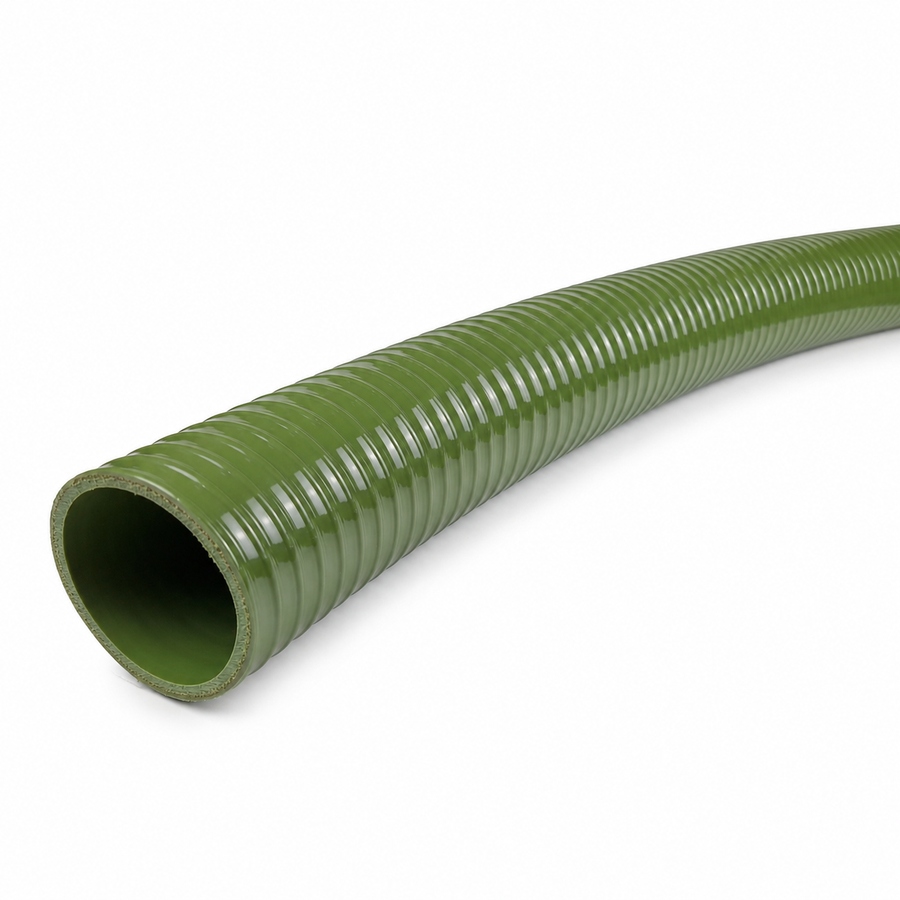

The CU is a premium medium-weight PVC suction and delivery hose reinforced with a semi-rigid crush-resistant PVC helix. It combines a smooth bore for minimum frictional loss with outstanding weather resistance and durability. Flexibility is maintained even in cold weather conditions. DEHP free, RoHS and REACH compliant. Manufactured by Griflex.
Particularly popular across agricultural, construction, and general manufacturing industries. Suitable for the suction and delivery of water, sewage, slurries, and powders. Available in olive green as standard.
Available in bore sizes from 25.4mm to 254mm. Supplied in 30m and 50m coils up to 6", with 10m straight lengths for sizes over 6". Select your bore size and coil length using the options above.
Need this hose made up with fittings? We can supply hose assemblies to order. Contact us with your requirements and we will get back to you.
Size Guide
|
Inner Ø (mm)
|
Outer Ø (mm)
|
Wall (mm)
|
WP (bar)
|
|---|---|---|---|
| 25.4 | 33.8 | 4.2 | 9.3 |
| 28.0 | 36.6 | 4.3 | 8.4 |
| 30.0 | 38.6 | 4.3 | 8.2 |
| 32.0 | 40.8 | 4.4 | 8 |
| 35.0 | 43.8 | 4.4 | 8 |
| 38.0 | 47.0 | 4.5 | 8 |
| 40.0 | 49.0 | 4.5 | 7.3 |
| 45.0 | 54.2 | 4.6 | 7.3 |
| 51.6 | 61.0 | 4.7 | 7.3 |
| 60.0 | 70.0 | 5 | 6.7 |
| 63.5 | 73.4 | 5.2 | 6.7 |
| 76.0 | 87.6 | 5.8 | 6 |
| 80.0 | 92.0 | 6 | 5 |
| 90.0 | 102.4 | 6.2 | 5 |
| 102.0 | 115.6 | 6.8 | 4.7 |
| 127.0 | 141.4 | 7.2 | 4 |
| 140.0 | 155.2 | 7.6 | 3.3 |
| 152.0 | 169.4 | 8.7 | 3.3 |
| 204.0 | 229.4 | 12.7 | 2.7 |
| 254.0 | 280.0 | 13 | 2 |
Need a size not listed? We can source hoses to specification. Contact our team and we will get back to you.
