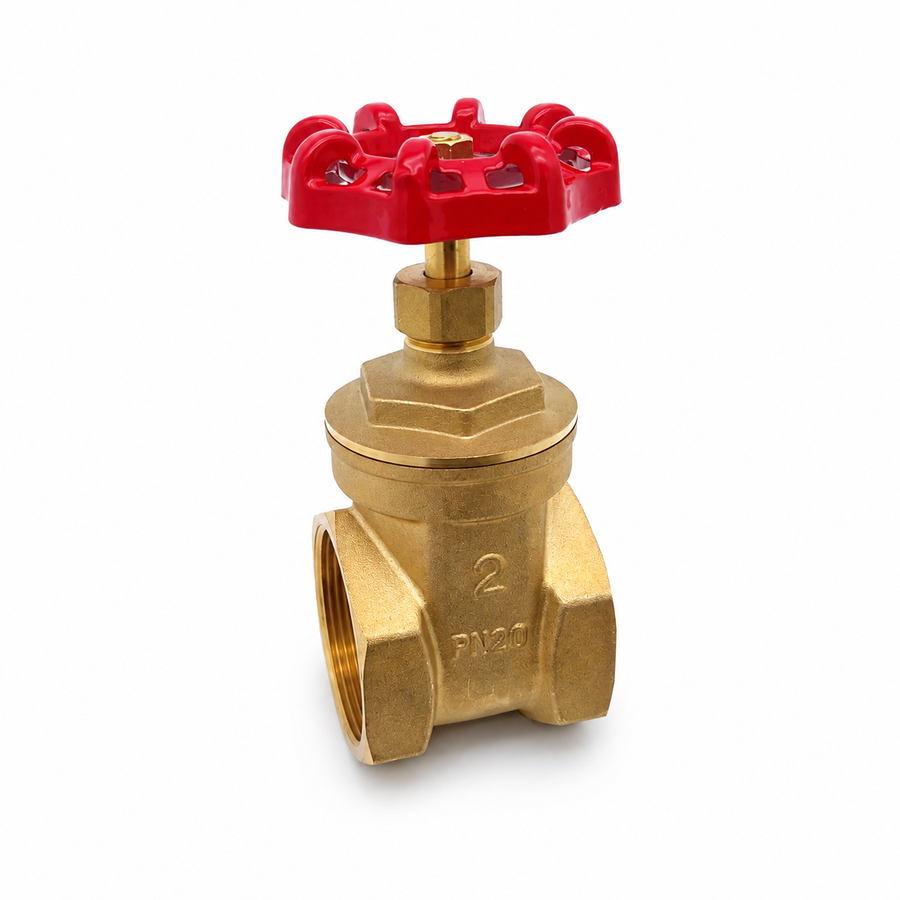

Brass gate valve with screwed BSP female threaded connections and a red handwheel for manual operation.
Manufactured with a brass body and fitted with PTFE sealing and packing components. The valve has a working temperature range of -10°C to +80°C, with thread type and maximum working pressure varying by size.
Connection & Pressure by Size
- 3/8″ to 2″: BSPT threads, maximum working pressure 20 bar (PN20)
- 2½″ to 4″: BSPP threads, maximum working pressure 16 bar (PN16)
The valve features a cast aluminium handwheel with brass and PTFE components used throughout the valve assembly.
Features
- Brass gate valve
- Female x female screwed BSP connections
- Brass body
- PTFE seal and packing
- Cast aluminium handwheel
- BSPT threads from 3/8″ to 2″
- BSPP threads from 2½″ to 4″
- PN20 up to 2″
- PN16 from 2½″ upwards
- Working temperature: -10°C to +80°C
- Available in sizes from 3/8″ to 4″
